Product Name:

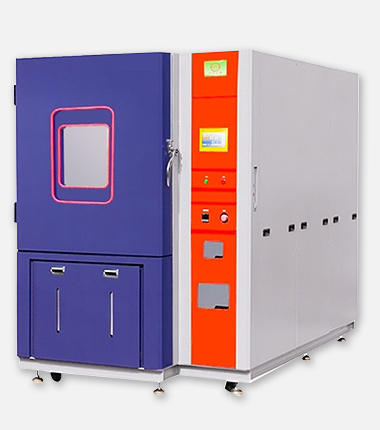

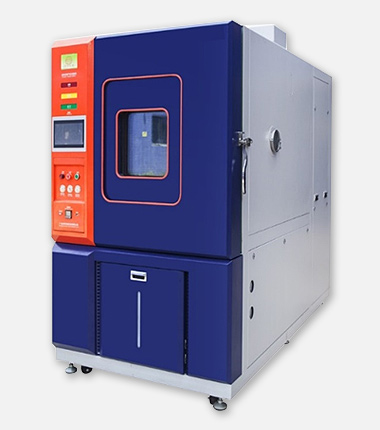

High and Low Temperature Low Pressure Test Chambers

Function
  • Mainly use to test the environmental and adaptability and reliability test of the workpiece under the action of low pressure, high temperature and low temperature, or at the same time, or to measure the electrical performance parameters of the test piece at the same time.
  • Suitable for the adaptability test of electrical, electronic, instrumentation and other products parts and materials in storage, transportation and use under high and low temperature alternating environment.
Core strength
  • Unique refrigerant servo valve controls flow, energy saving over 30%
  • Special design test hole
  • Metering result report
  • Aviation plug
  • Special steel plate
  • 75.2kPa - 18.8kPa ≤ 15s fast depressurization standard, can also meet the explosion pressure test of 0/1s
Product Specification
NW Capacity 225L 504L 1000L 1700L Customize
Inner size (W*D*H)(cm) 70*46*70 80*70*90 100*100*100 120*120*120 Customize
Outer size (W*D*H)(cm) 100*195*210 110*225*230 130*265*245 150*360*230 Customize
Net weight (kg) Based on the actual weight
Exterior material Standard 1.5mm electrolytic plate electrostatic spray paint
Interior material Stainless steel plate SUS#304
Temp Range Type L: -40℃ to 150℃;
Type S: -70℃ to 150℃;
or customized
Humid Range 20%RH to 98%RH
Temp Fluctuation ±0.5℃
Temp Variation in Space ±3℃ (For equal and more than 100℃);
±2℃ (For less than 100℃)
T Pull Down Rate 0.7℃ - 1℃/min
Heat Up of Temp 0.7℃ - 1℃/min
Air Pressure Range Normal pressure to 1kPa
De-Pressure Rate ≥40kPa, ±2kPa;
4kPa-40kPa, ±0.5kPa;
≤4kPa, ±0.1kPa
Pressure Recovery Normal pressure to 1kPa ≤ 30 mins
Configuration Interface With USB, WLAN, RS232 port, APP function is optional
Power supply AC 380V 50Hz
