Product Name:

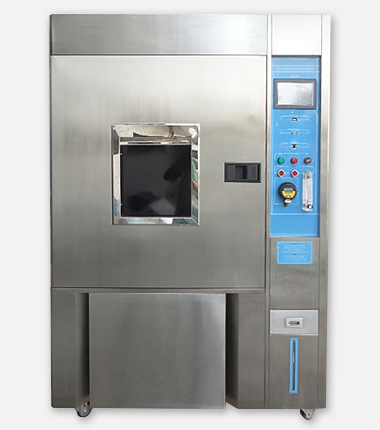

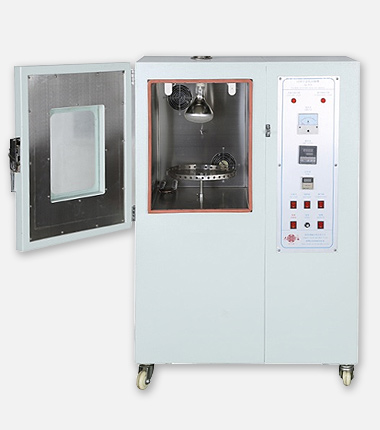

UV Aging Test Chamber

Function
  • Mainly use for plastics, paint, and rubber materials to simulate artificial acceleration tests in sunlight, rain, and dew environment.
Core strength
  • Unique refrigerant servo valve controls flow, energy saving over 30%
  • At 85°C and 85%RH, no need to on the compressor
  • Metering result report
  • Quad-insulation, non-fogging or formation of water droplets
  • Energy saving up to 35%
  • No frost for long-term low temp and humidity condition
Product Specification
Model 264
Inner size (W*D*H)(cm) 1170*450*550
Outer Size (W*D*H)(cm) 1300*550*1380
Exterior Material SUS304 stainless steel hairline plate
Interior Material SUS304 stainless steel plate
Temp Range RT to 70℃
Humid Range 65-95%RH
Lamp Configuration Standard 8, can be purchased separately
Lamp L=1200, 40W, 8 UVA340 lamps
Radioactivity 1,000uw/cm2
Control Method Lighting, condensing cycle programmable control
Wavelength 295-330mm
