Product Name:

Rain Test Chambers

Rain Open IPX1 IPX2

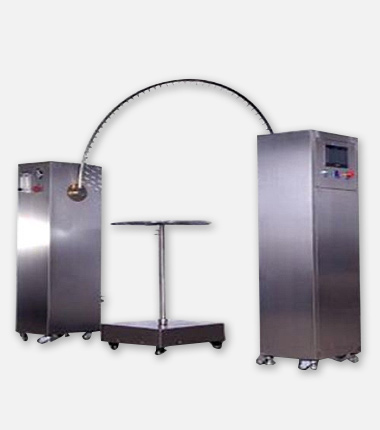

Rain Open IPX3 IPX4

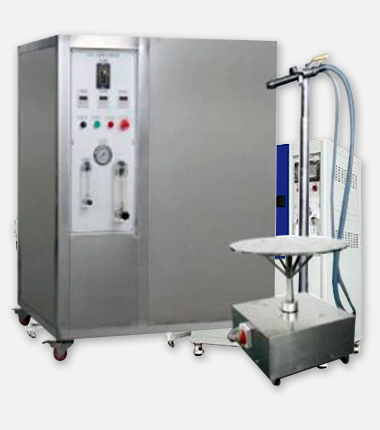

Rain Open IPX5 IPX6

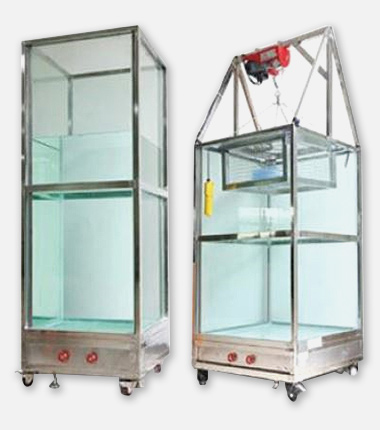

Rain Shower IPX7 IPX8

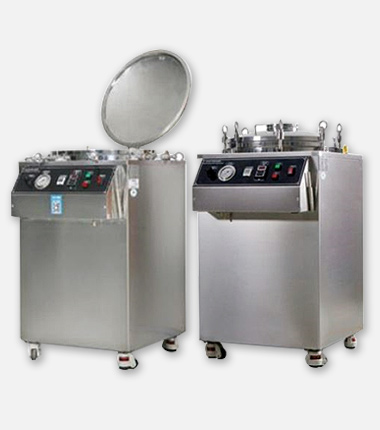

Rain Deep Water IPX8

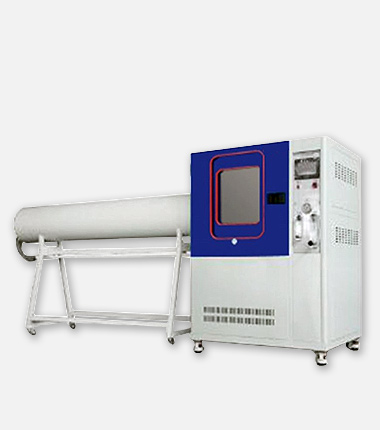

Rain Box IPX123456

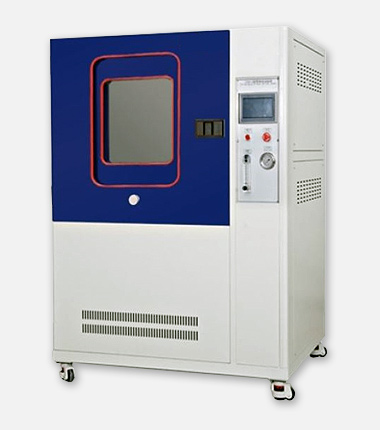

Rain Box IPX3 IPX4

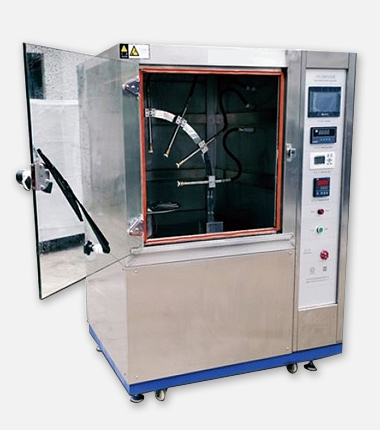

Rain Box IPX9
Function
  • Applicable to electrical and electronic products (Including componenets), lighting products, automotive and motorcycle parts and seals and their products for shell production level test (IP waterproof level test), simulating that its products may be exposed to water during transportation and use.
  • Test for rain conditions affected by splashing water, and tests for the good performance of the outer casing when it is exposed to rain or after splashing.
Type:
  • Open IPX1, IPX2 raining machine
  • Open IPX3, IPX4 raining machine
  • Box type IPX3, IPX4 shower box
  • Open IPX5, IPX6 raining machine
  • IPX7, IPX8 shower box
  • IPX8 deep water test chamber
  • IPX9 box type shower box
Product Specification
Model 500 800 1000 1800
Inner Size (W*D*H)(cm) 500*500*500 800*800*800 1000*1000*1000 1000*1500*1200
Studio Temp Range RT
Waterproof Level IPX1, IPX2 / IPX3, IPX4
Nozzle Diameter Standard color steel plate/cold-roll steel sheets with coating/laminating metal sheet
Interior material 0.4mm
Other parameters
  1. Water spray hole spacing 50mm
  2. Swing tube inner diameter 15mm
  3. The diameter of the turnable is 600mm (Can be equipped with 200mm, 400mm table top)
  4. Flow rate 0-3L/min
  5. Pendulum angle 120⁰ (IPX3), 350⁰ (IPX4) or customize
  6. Swing tube swing speed 240⁰ back and forth 4s, 720⁰ back and forth 12s (Precise control) or customize
  7. Turnable lifting height 550-1,000mm
  8. The turnable bears about 50kg
  9. Turnable speed 1-5r/min (Adjustable accuracy)
Waterproof Level IPX1, IPX2 IPX3, IPX4 IPX5, IPX6 IPX7, IPX8
Studio Temp Range RT
Nozzle Diameter 0.4mm 0.4mm 6.3mm, 12.5mm --
Other Parameters for IPX1, IPX2
  1. The drip area and drip height can be customized according to the actual size of the product.
  2. The drip strength is 1.9-3.8L/H
  3. The drip aperture, diameter = 0.4m
  4. The hole spacing = 20mm
Other Parameters for IPX3, IPX4
  1. The radius of the pendulum tube can be customized according to the product size.
  2. If the IPX4 test require a water spray head, the instructions should be made when ordering.
  3. The radius of the swing tube is 200mm, 400mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, 1600mm, which can be customized.
  4. The spray volume of each nozzle is 0.07L/min
  5. The center distance of the hole is 50mm
  6. The angle of the swing tube is 1-135⁰ from the center to the sides.
Other Parameters for IPX5, IPX6
  1. The spray volume of the 6.3mm nozzle is 12.5L/min
  2. The severity is 75L/min
  3. The spray volume of the 12.5mm nozzle is 100L/min
  4. The spray distance is 2.5-3m
Other Parameters for IPX7, IPX8
  1. IPX7 uses the water tank method
  2. IPX8 uses pressurized water tank method
Model 500 800 1000 1800
Inner Size (W*D*H)(mm) 500*500*500 800*800*800 1000*1000*1000 1000*1500*1000
Nozzle Test Angle 0⁰, 30⁰, 60⁰, 90⁰ (Verticle direction)
Nozzle Distance 100-200mm (Can be adjusted manually)
Water Spray Flow 14-16L/min
Water Spray Pressure 8,000-10,000kPa
Test Time 120s (30s per location)
